Quinn Bros Industries Ltd is one of the UK’s leading suppliers of high quality used sheet metal fabrication and engineering machinery.

​

All our machines have been run, checked and setup by our in-house engineers.



We can also supply machines with new or reconditioned blades/tooling.

​​

All of our machines can be demonstrated and tested under power prior to purchase.



Please see our stock below...



Can't see what you're looking for?

Please enquire we may have it yet unlisted or we will know where to find it.

MAKE AN ENQUIRY

Thanks for submitting!

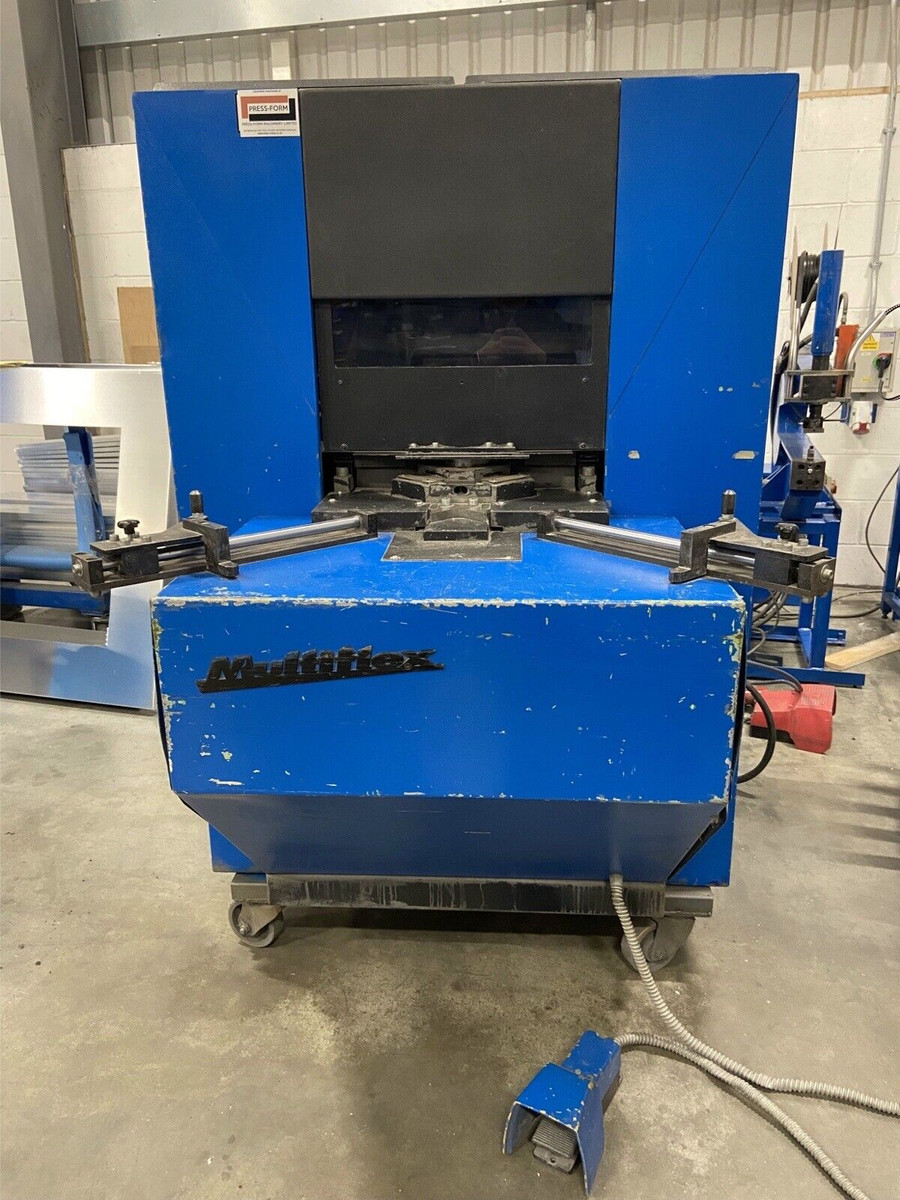

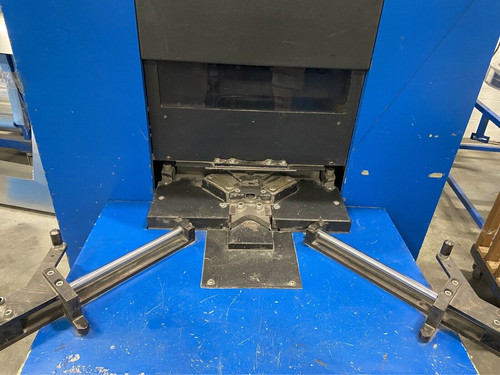

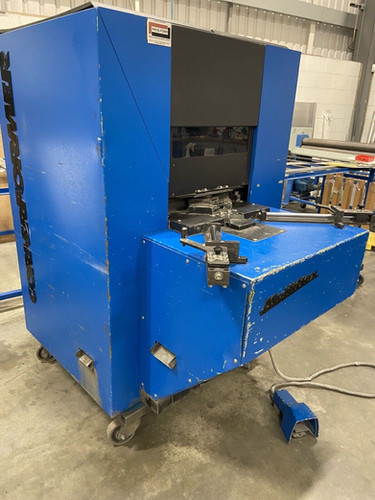

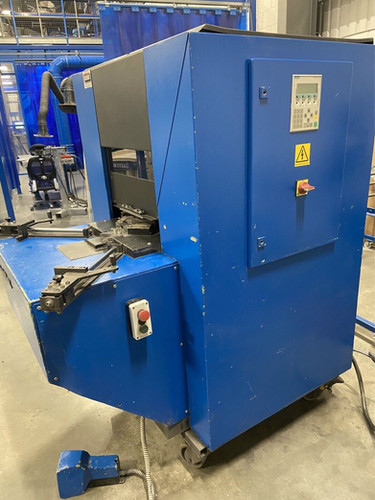

ACF Flexible Cornerformer - Multiflex

ACF Flexible Cornerformer - Multiflex

SKU: 1881
ACF Flexible Cornerformer - Multiflex

Type: ACF Cornerformer – Multiflex
Machine No. MF 25-26
Year of Manufacture: 2000
Colour: RAL 5017 Blue
Condition: USED
Electrical requirement : 400V 50/60HZ, 24V (2.5KW)

Technical Specifications:
Minimum Panel Size: 150mm x 150mm
Maximum Panel Size: Unlimited
Maximum Outer Corner Radius (Standard) 25mm
Maximum Length of reverse flange: (Standard) 21mm
Working Height: 950mm
Overall Height: 1580mm
Floor Space (L x W): 1450mm x 1100mm
Operating pressure: 150 bars
Weight: 500kgs
Oil tank reservoir: 40 litres

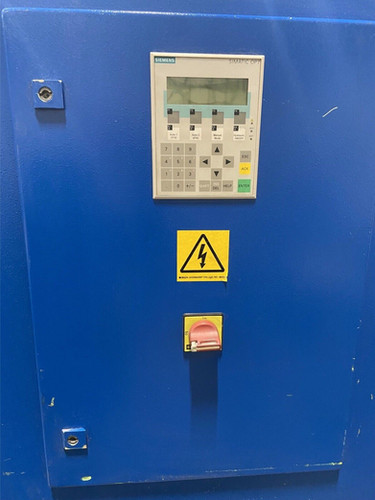

Control Unit: Siemens S7

Technical Specifications:
Mild Sheet: 0.8mm – 3.0mm
Aluminium: 0.8mm – 3.0mm
Stainless Steel: 0.8mm – 2.0mm



Tooling Set For 25mm Outer Corner Radius:
1x Rotary Forming Roll
1x Forming Tool (roll)
1x Multiflexble forming block
1x Set (2pcs) external shear blades

Extra Parts
8mm Forming tool (Roll) comes with the machine but will require purchasing the 8mm Shearblade section if you require 8mm radius
