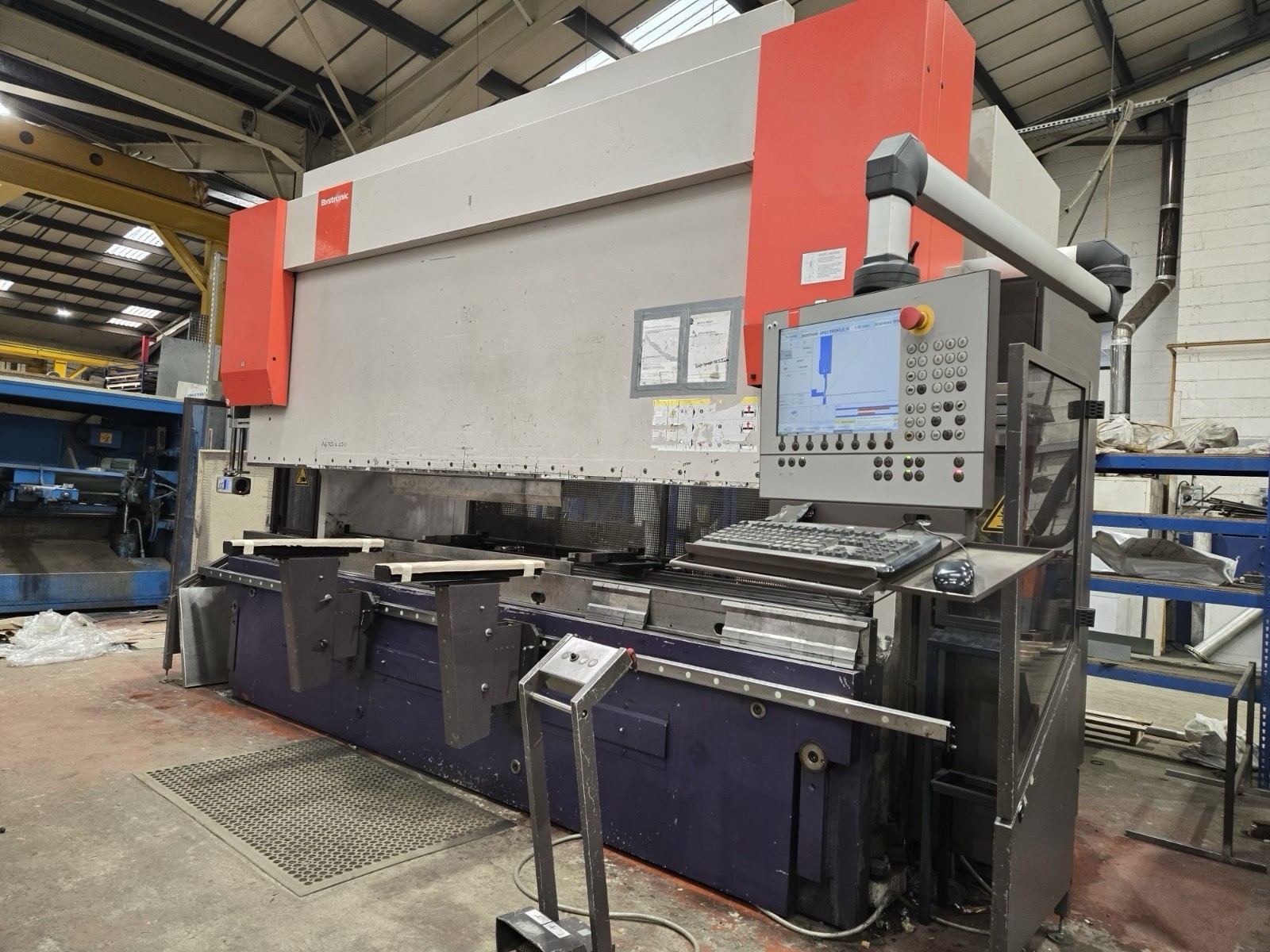

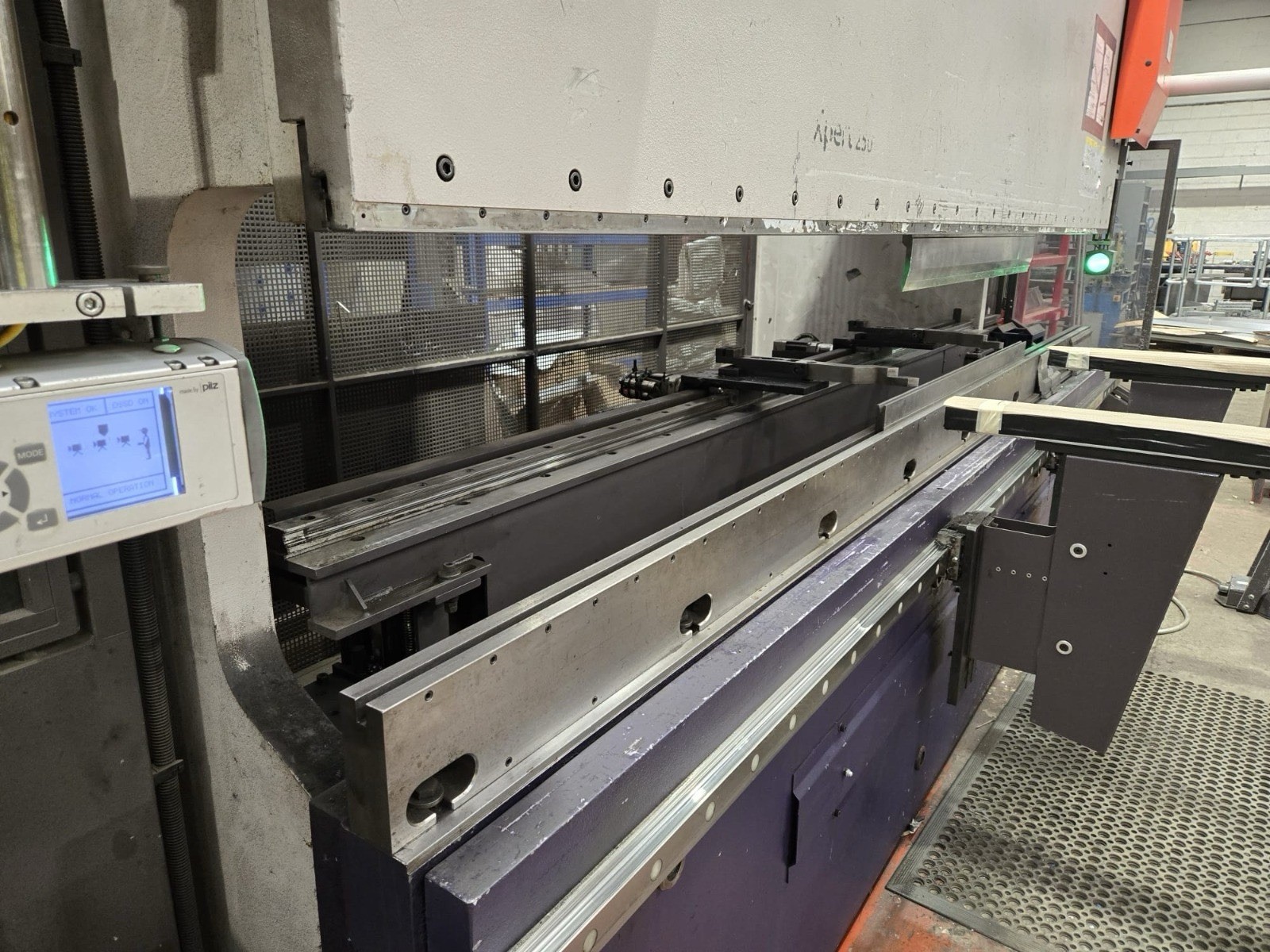

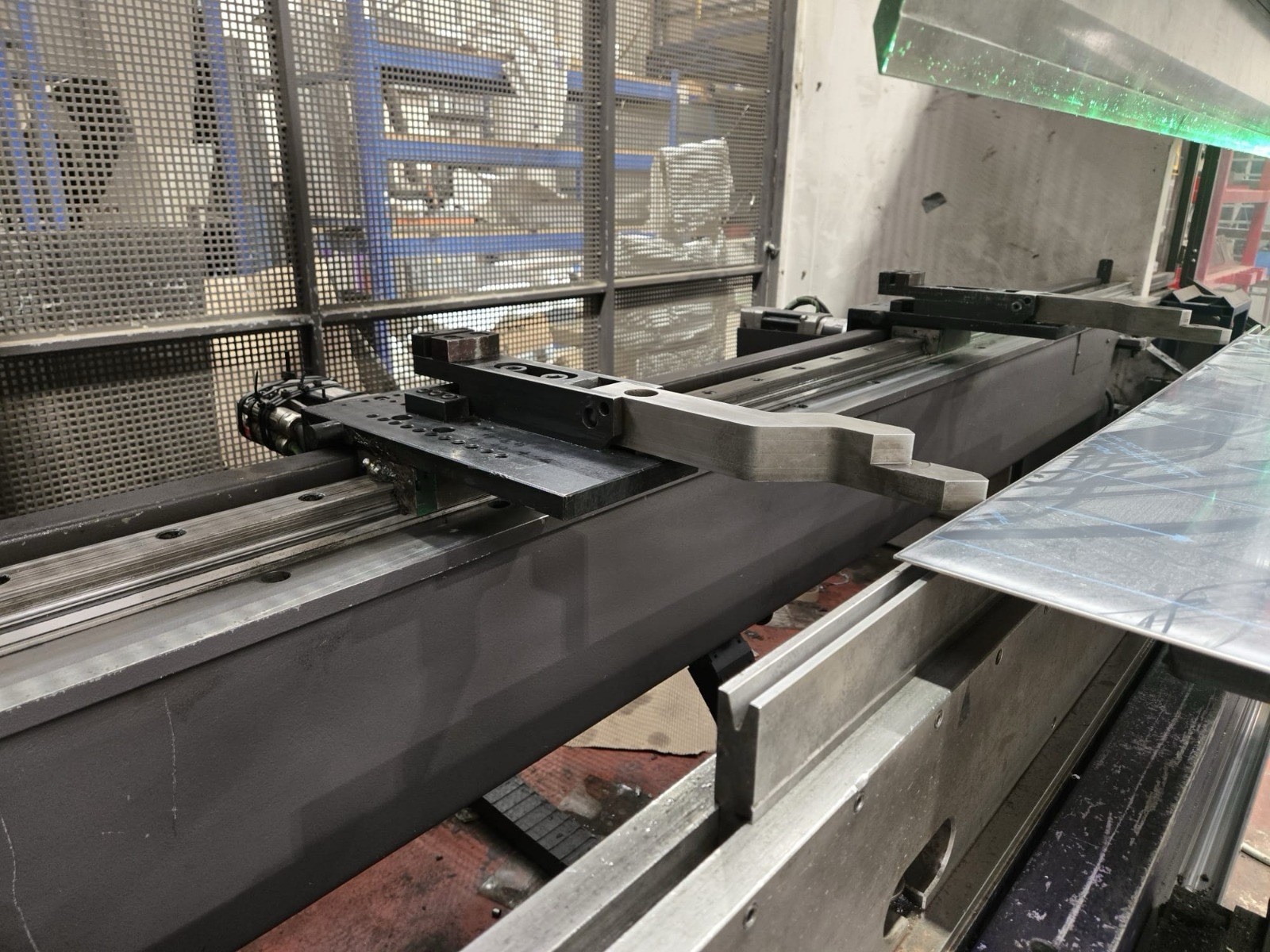

Bystronic Xpert 250 x 4100 CNC Hydraulic Press Brake
Used Bystronic pressbrake, built 2011, in stock now at our Cradley Heath works and available to view under power by appointment.
- Brand
- Bystronic
- Model
- Xpert 250 x 4100
- Year
- 2011
- Capacity
- 4100 mm x 250 Tonne
Stock Ref 2119
Tell us where it is going and we will come back with a delivered price, usually the same working day.
Or call 01384 638 379 Mon–Fri 8am–4pm
Description
Bystronic Xpert 250 x 4100 pressbrake. Folds and forms sheet and plate. 4100 mm x 250 Tonne. Bystronic control (6 Axis (Y1, Y2, X, R, X1, Z2) + crowning). Year of manufacture 2011.
- Hydraulic clamping
- Sliding front sheet supports
- Wandering twin foot Pedals/Pedestal stop

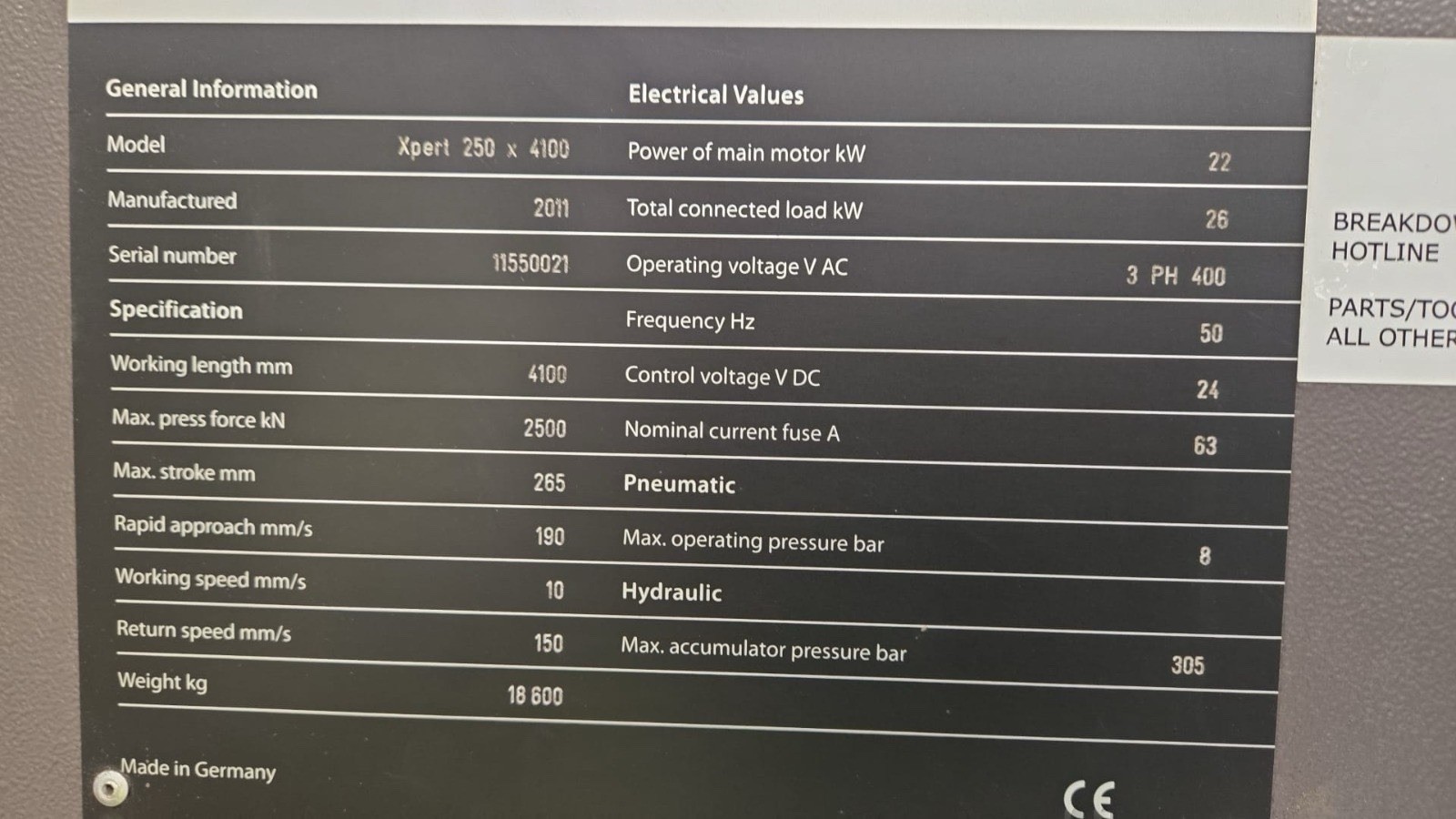

Technical Specification
- Make
- Bystronic
- Model
- Xpert 250 x 4100
- Tonnage
- 250 Tonne
- Bending Length
- 4100 mm

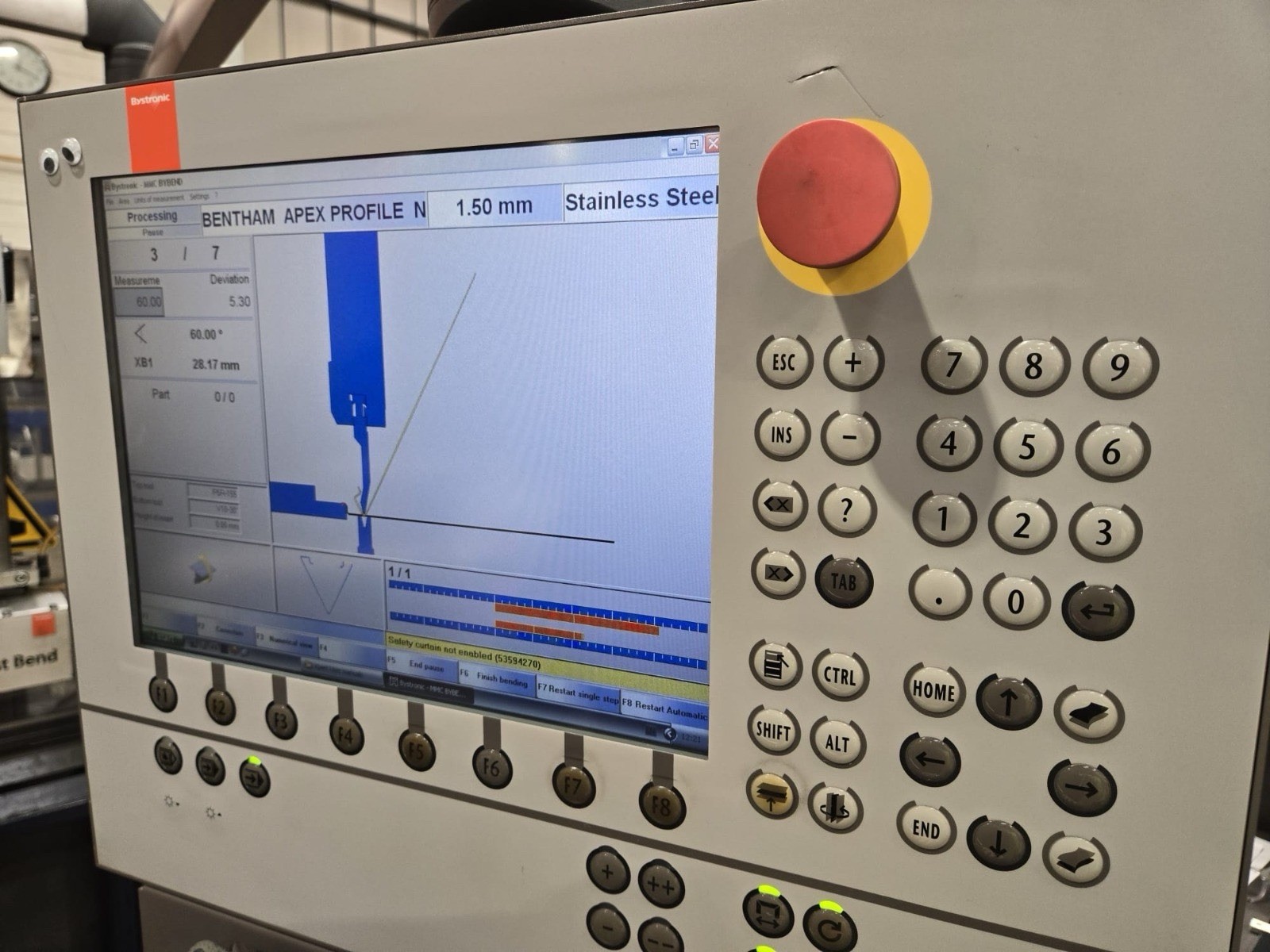

- Control
- Bystronic
- Axes
- 6 Axis (Y1, Y2, X, R, X1, Z2) + crowning
- Year
- 2011
- Weight
- 18,600 kg
- Motor
- 22 kW
- Origin
- Made in Germany
- Serial Number
- 11550021
- Supply
- 3 PH 400V AC, 50Hz
- Standard stroke
- 265 mm
- Installed height (clearance between lower and upper beam)
- 550 mm
- Distance between side supports
- 3750 mm
- Overhang
- 400 mm

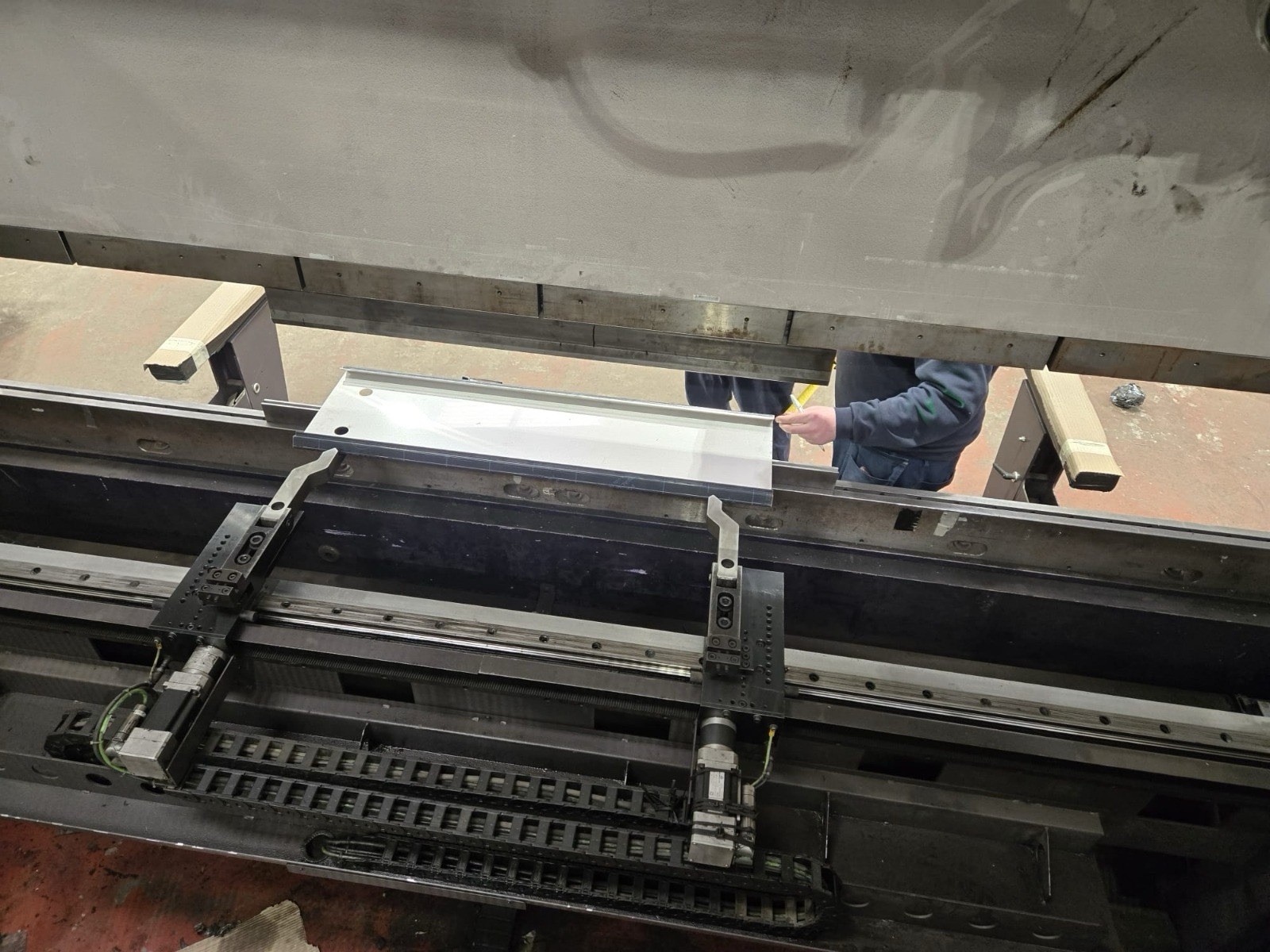

- Back gauge area
- 1050 mm
- X-axis travel
- 590 mm
- X-axis speed
- 500 mm/s
- R-axis travel
- 250 mm
- R-axis speed
- 150 mm/s
- Z-axis speed
- 1000 mm/s
- Z-axis speed (6 axes)
- 500 mm/s
- Y-rapid traverse
- 190 mm/s
- Y-working speed
- 1 - 10 mm/s
- Y-return speed
- 150 mm/s
- Max press force
- 2500 kN
- Total connected load
- 26 kW
- Control voltage
- 24V DC
- Nominal fuse
- 63 A
- Max operating pressure (pneumatic)
- 8 bar
- Max accumulator pressure (hydraulic)
- 305 bar
- Guarding

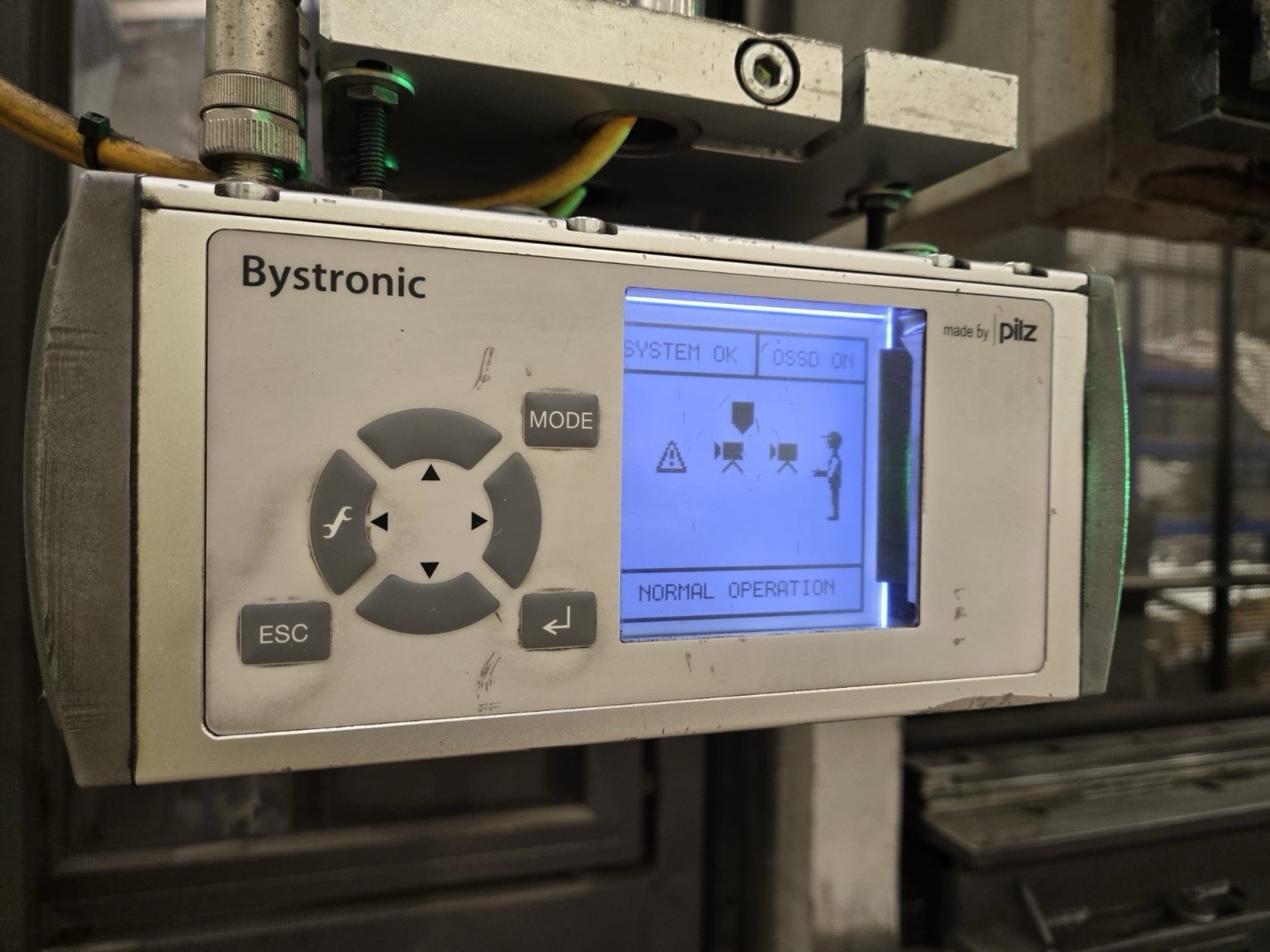

- Bystronic pilz laser guards; Fully enclosed rear gate guarding
Enquire About This Machine
Send us a message and we’ll come straight back with more detail, video of the machine running, or a delivered price.
- Machines can be seen under power by appointment
- Video available on request
- Nationwide delivery and installation arranged
- Worldwide crating and export
Would rather talk it through?
01384 638 379Mon–Fri 8am–4pm · quote Ref 2119 and we will know the machine
Send An Enquiry
Bystronic Xpert 250 x 4100 CNC Hydraulic Press Brake Ref 2119

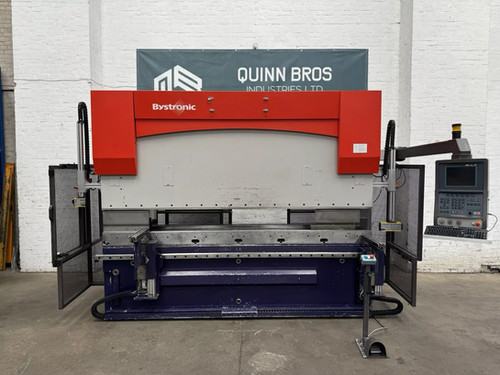

Similar Machines
