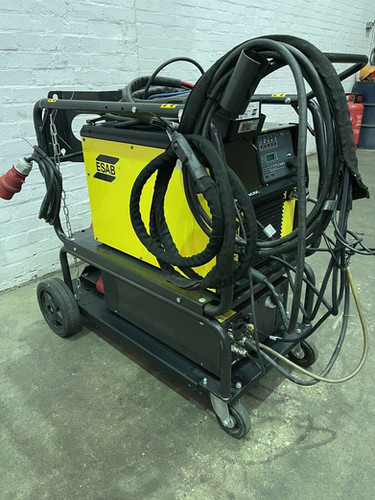

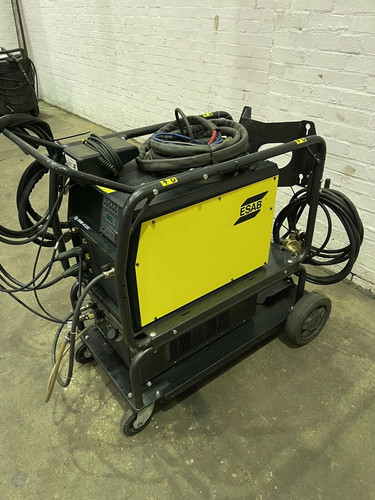

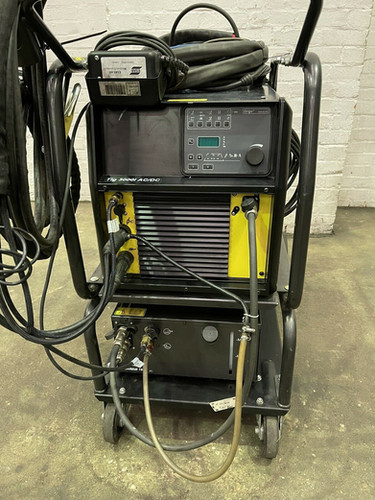

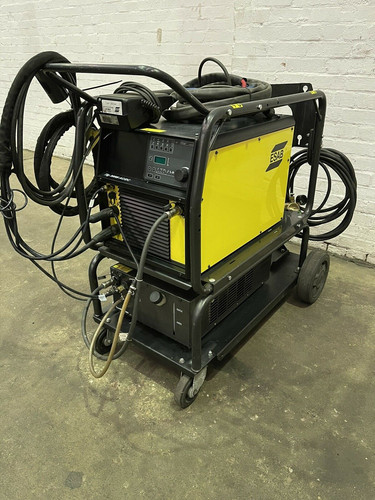

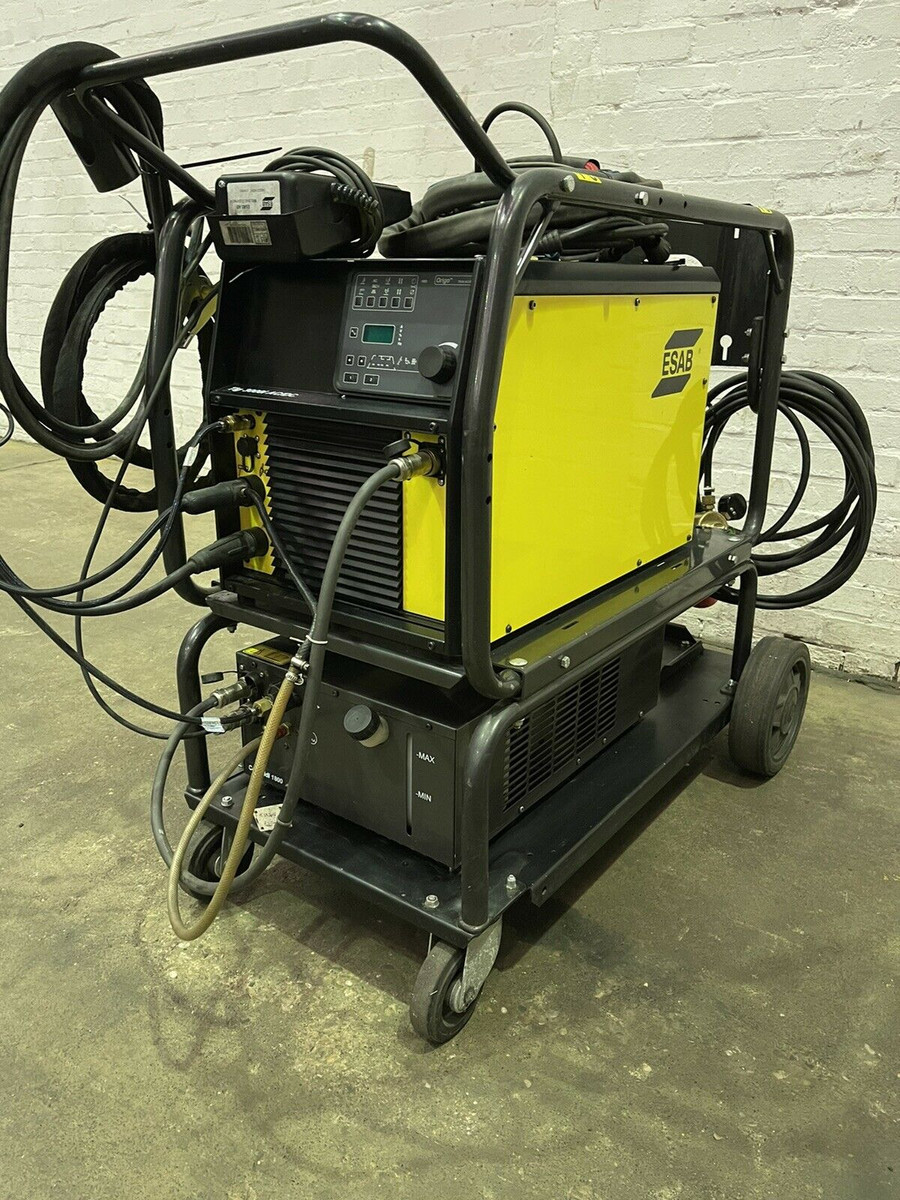

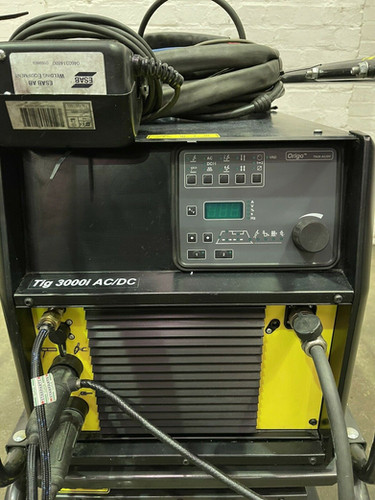

ESAB Origo Tig 3000i AC/DC Water Cooled Tig Welder
This Esab welder has been sold. We take in similar machines most weeks. send us an enquiry and we will let you know when the next one lands.
- Brand
- Esab
- Model
- Origo Tig 3000i AC/DC Water Cooled Tig Welder
Stock Ref 1714
This one has gone. Tell us what you are after and we will be in touch as soon as a similar machine comes through the door.
Or call 01384 638 379 Mon–Fri 8am–4pm
About This Machine
Description
Esab Origo Tig 3000i AC/DC Water Cooled Tig Welder machine.
- Maximum output DC/AC: at 35% duty cycle, TIG , A/V - 300/22 at 60% duty cycle, TIG, A/V - 240/19.6
- Coolmidi 1800 Water Cooling Unit Specification:
- Weight (kg): 19/23
Technical Specification
- Make
- Esab
- Model
- Origo Tig 3000i AC/DC Water Cooled Tig Welder
- ESAB Origo Tig 3000i AC/DC Water Cooled Tig Welder TA24 Package, 400v
- 3ph
- Setting range TIG AC/DC
- 4 - 300
- Setting range MMA
- 16 - 300
- Mains supply
- 400/3 V/Ph
- Fuse (slow)
- 20A
- Mains cable (Ø mm2)
- 4 x 1.5
- at 100% duty cycle, TIG, A/V
- 200/18
- Slope up (sec)
- 0 - 10
- Slope down (sec)
- 0 - 10
- Gas post-flow (sec)
- 0 - 25
- Pulse frequency DC (sec)
- 0.01 - 2.5
- Frequency AC (Hz)
- 10 - 150
- AC balance (%)
- 50 - 98
- Open circuit voltage (V DC)
- 54 - 64
- Energy save mode (W)
- 30
- Power factor at 100% (at TIG mode)
- 0.72
- Operating temperature (C)
- --10 to +40
- Efficiency at 100%, at TIG mode, %
- 67
- Enclosure class
- IP 23C
- Insulation class (Main trafo.)
- H
- Standards
- IEC/EN 60974-1, -3, -10
- External dimensions (mm)
- 652 x 412 x 423
- Weight (Kg)
- 42
- Cooling capacity (W, l/min at 40 C)
- 1600/1.2
- Coolant volume (l)
- 4.2
- Max flow (l/min)
- 4
- Max pressure (50/60 Hz bar)
- 3/3.8
- External dimension (mm)
- 710 x 385 x 208
