Morgan Rushworth HSR-3 80.245 Hydraulic Section Bending Rolls
Used Morgan Rushworth section bending rolls, in stock now at our Cradley Heath works and available to view under power by appointment.
- Brand
- Morgan Rushworth
- Model
- HSR-3 80.245
- Capacity
- Channel Legs In @ 1000mm ØUPN 120
PricePOA
Stock Ref 2123
Tell us where it is going and we will come back with a delivered price, usually the same working day.
Or call 01384 638 379 Mon–Fri 8am–4pm
About This Machine
Description

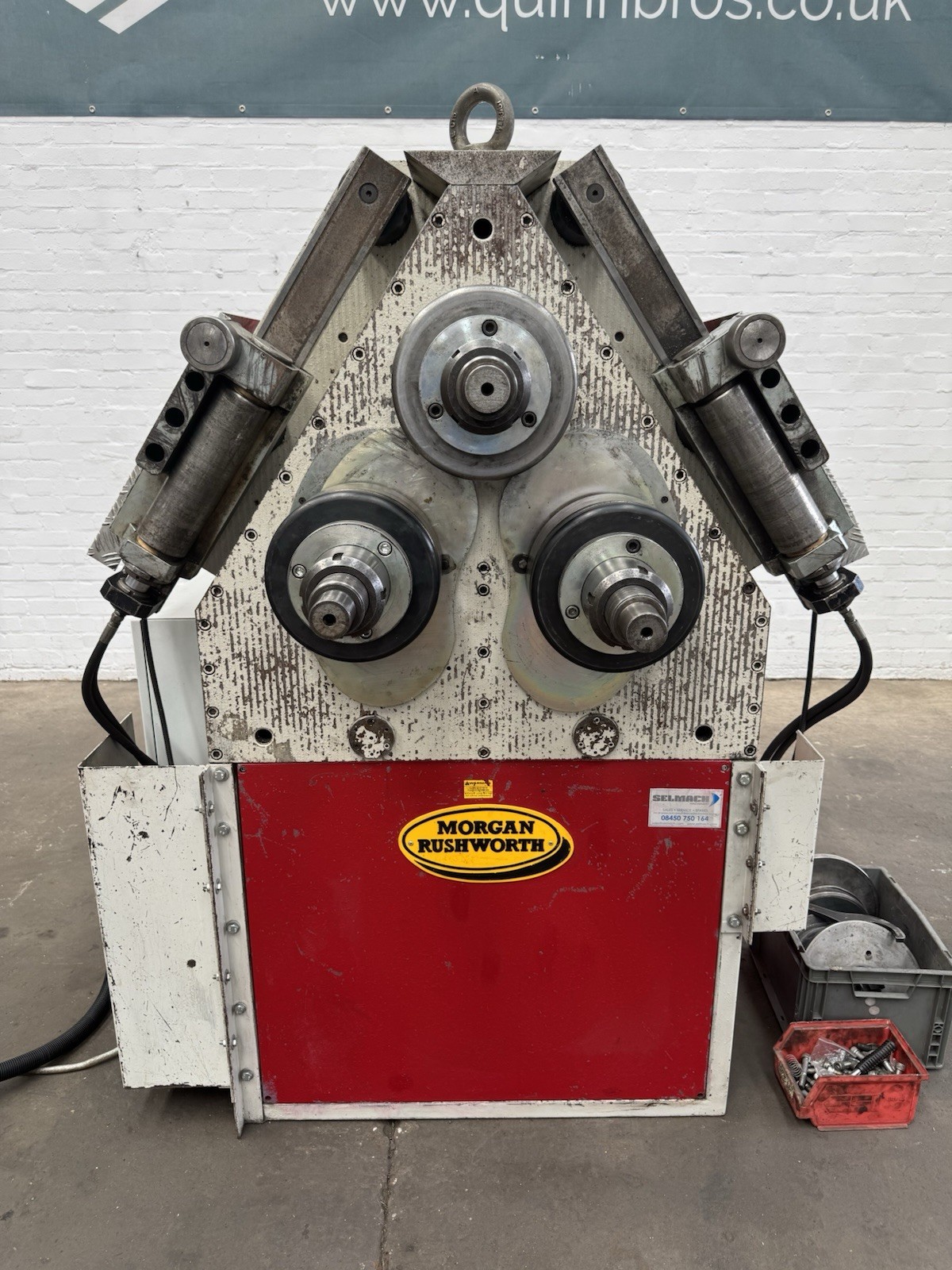

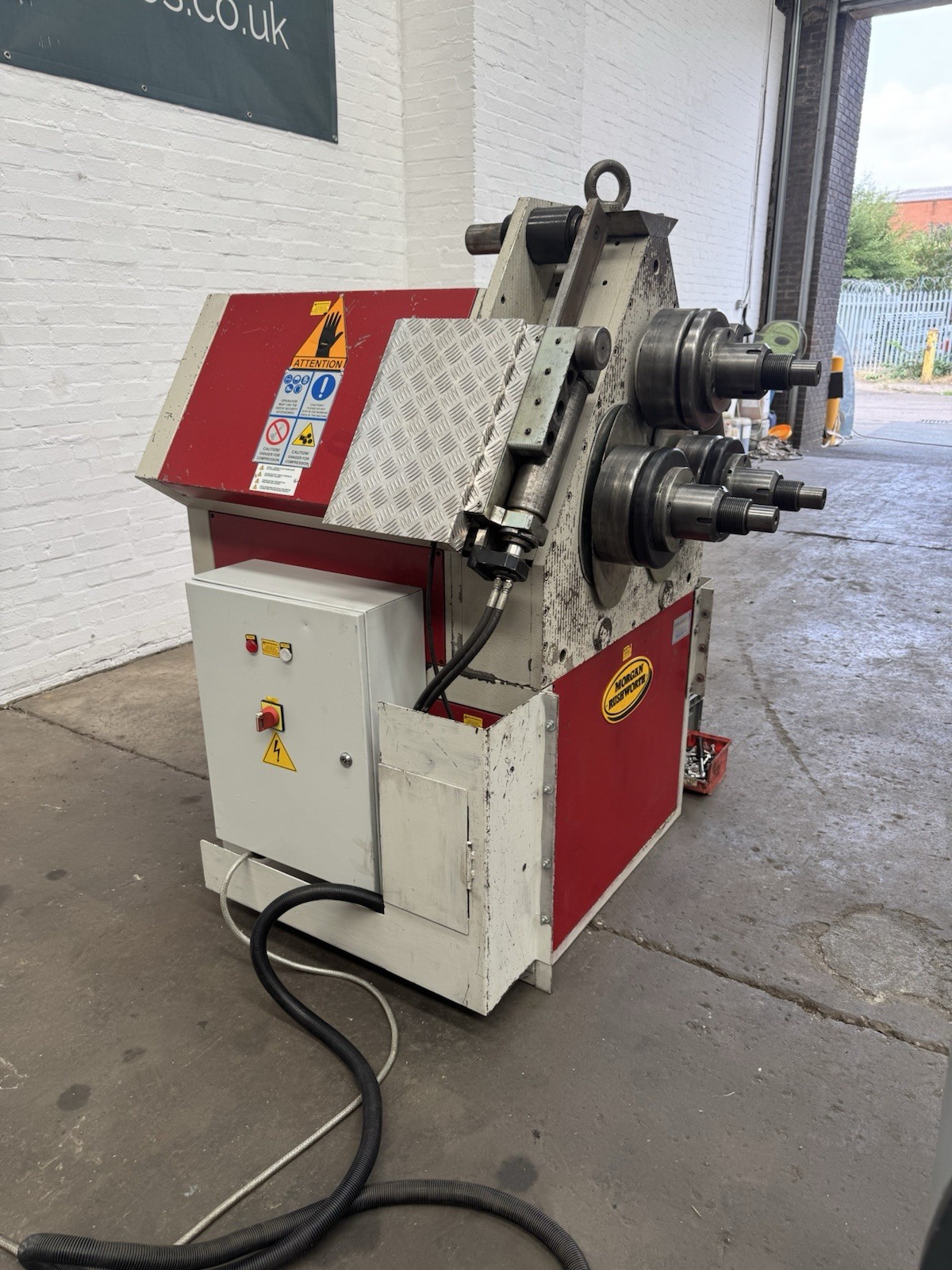

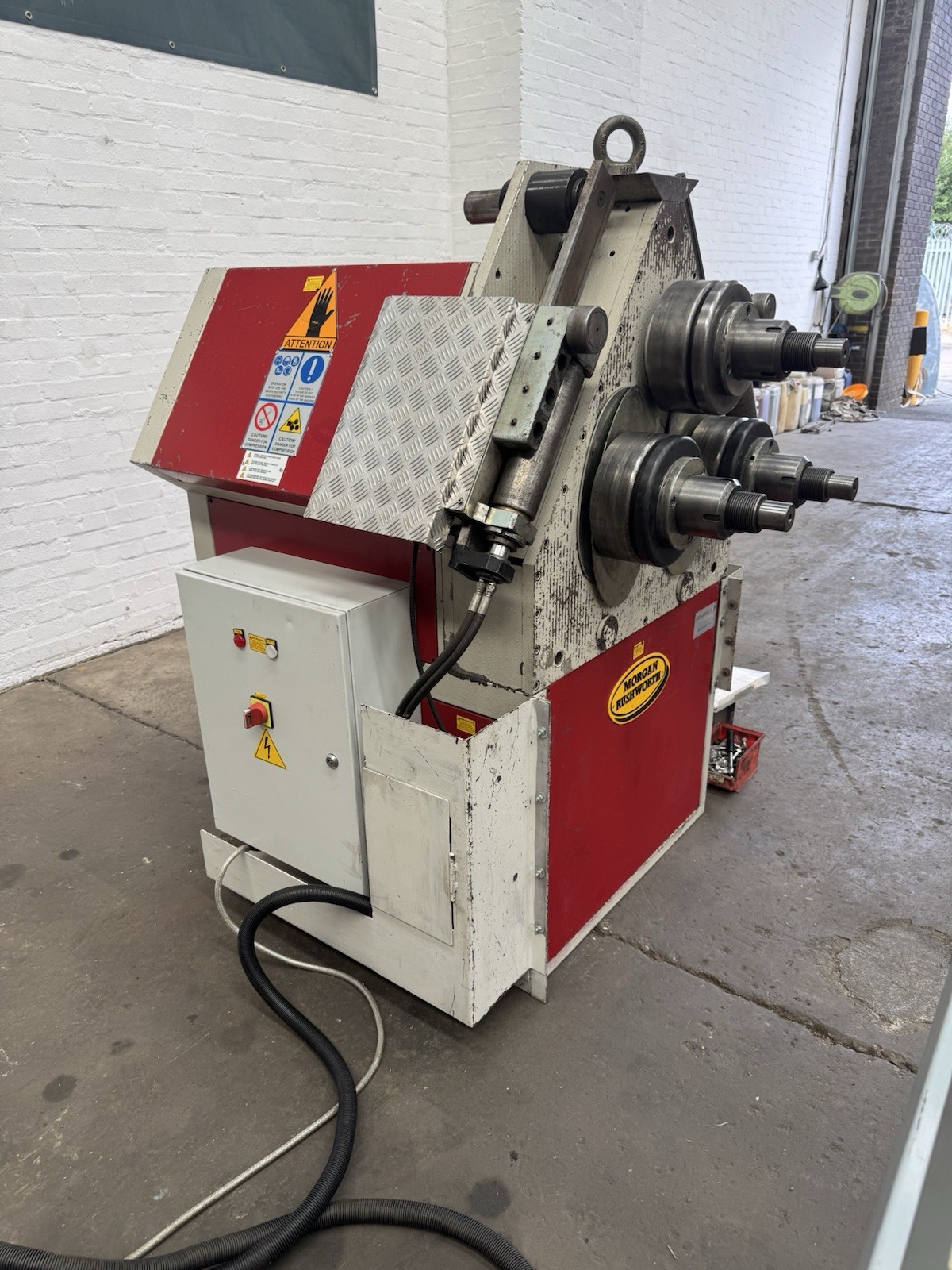

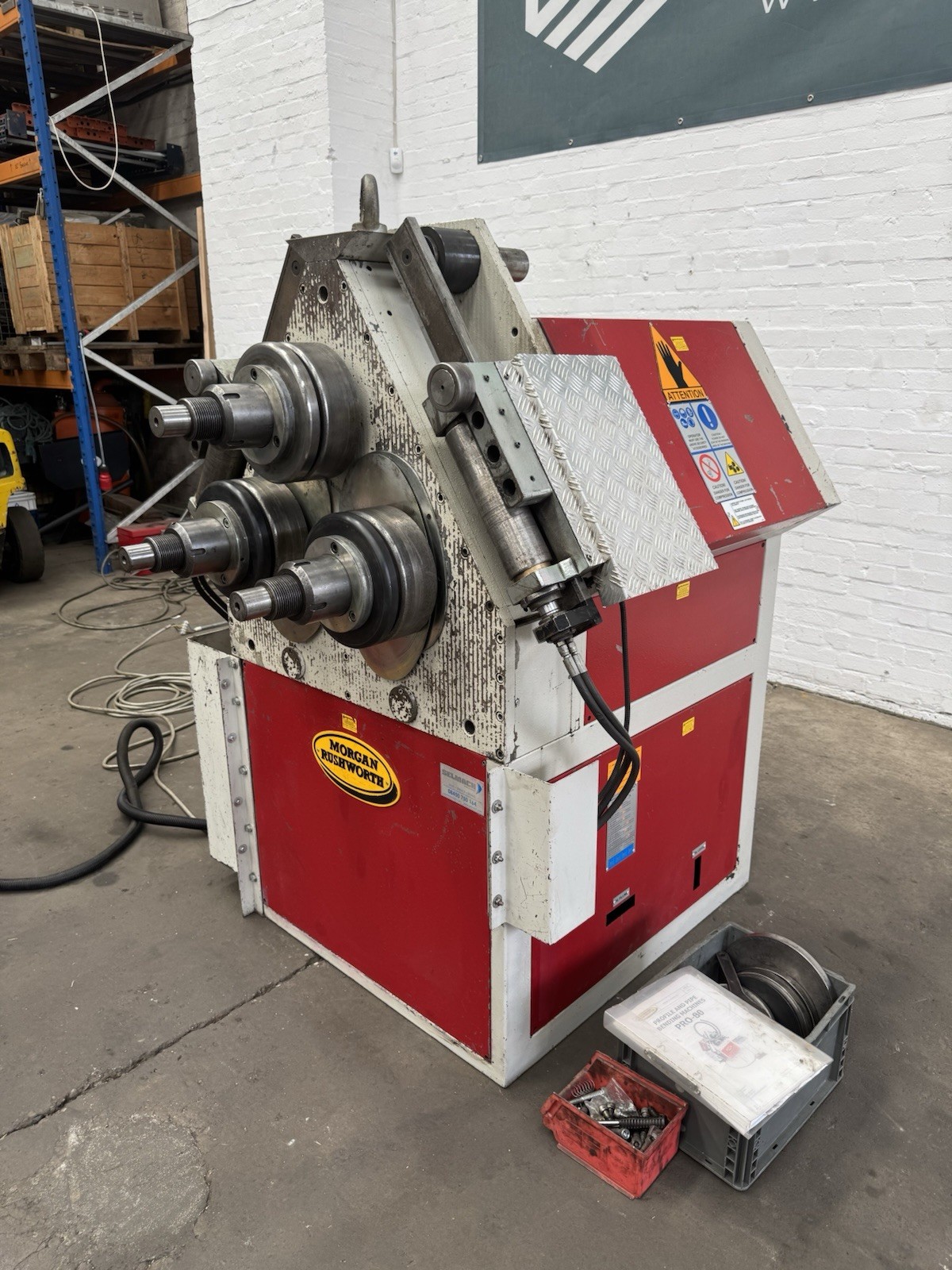

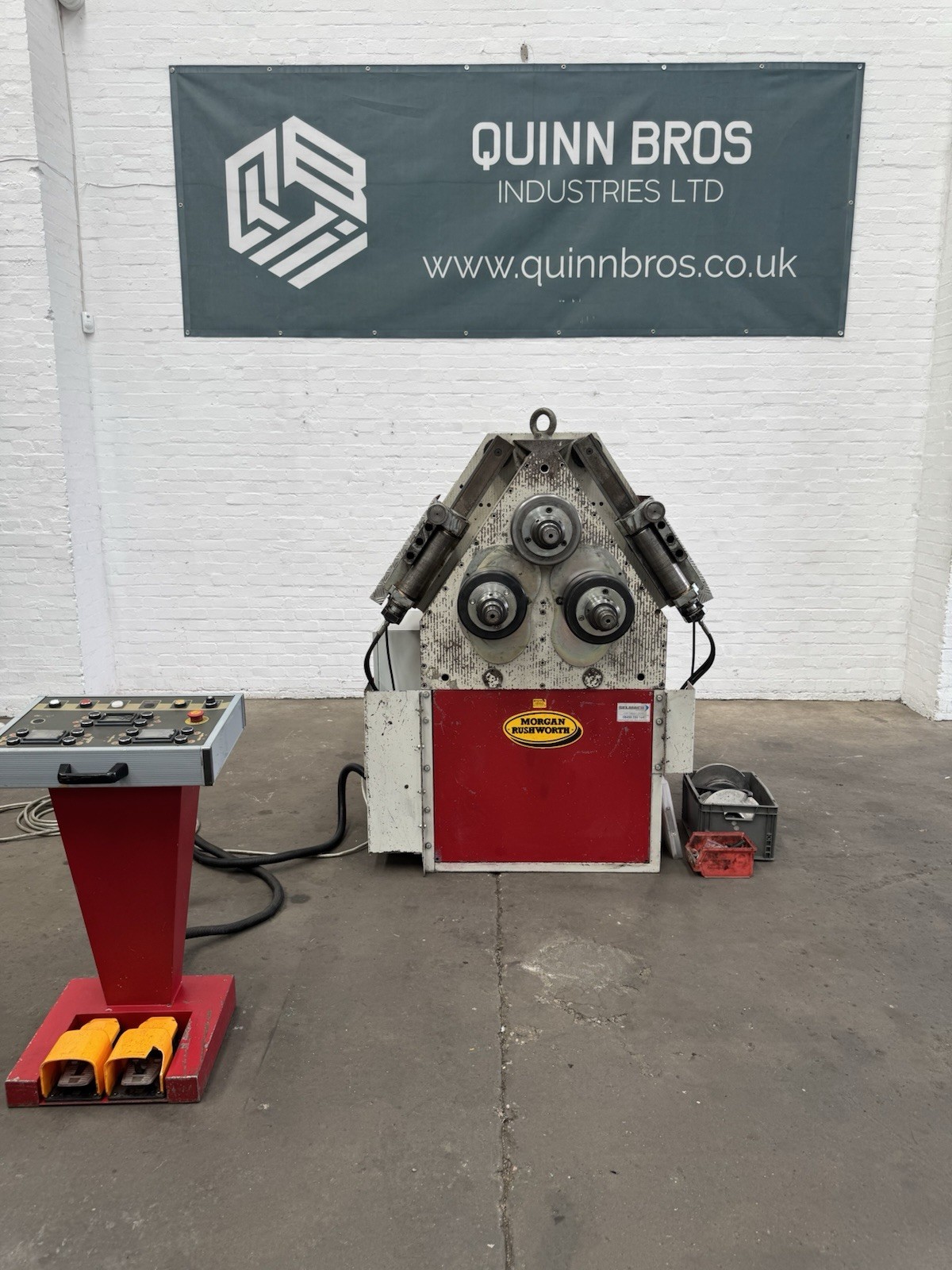

Morgan Rushworth HSR-3 80.245 section bending rolls. Rolls angle, bar and section into curves and rings.
- Powered movement of guide rolls (up/down & in/out)
- Powered raise & lower bottom rolls

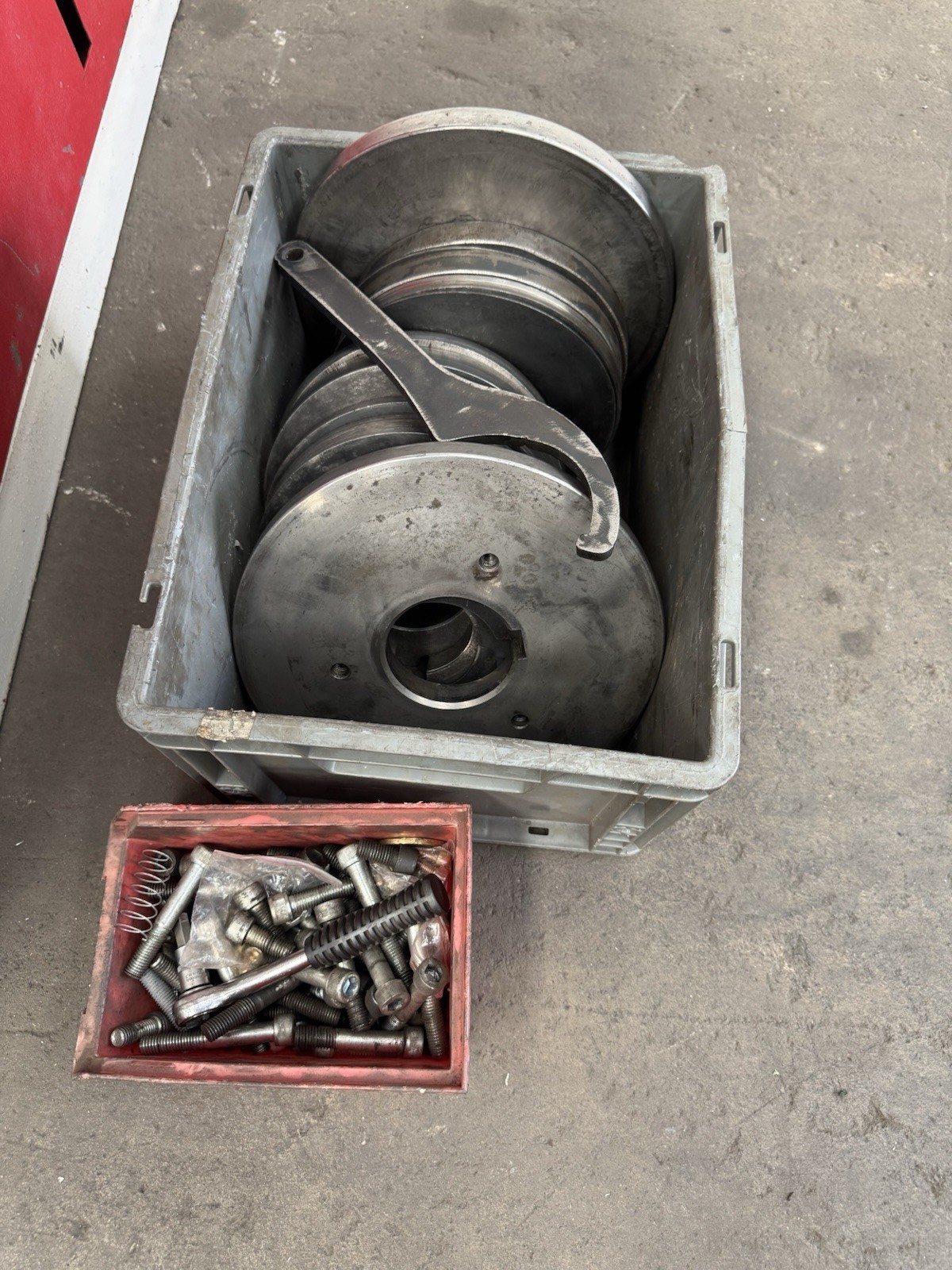

- Assortment of tooling

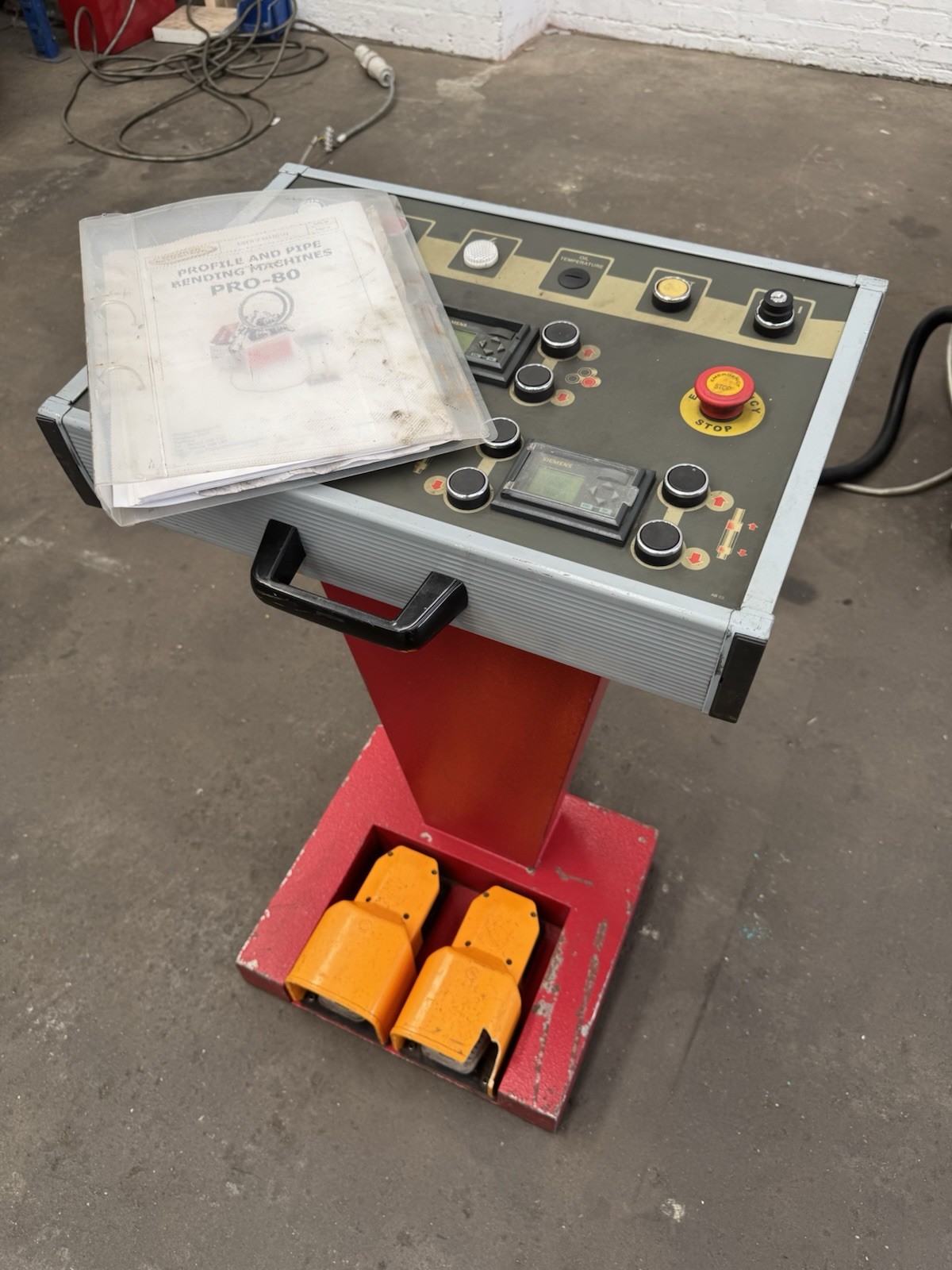

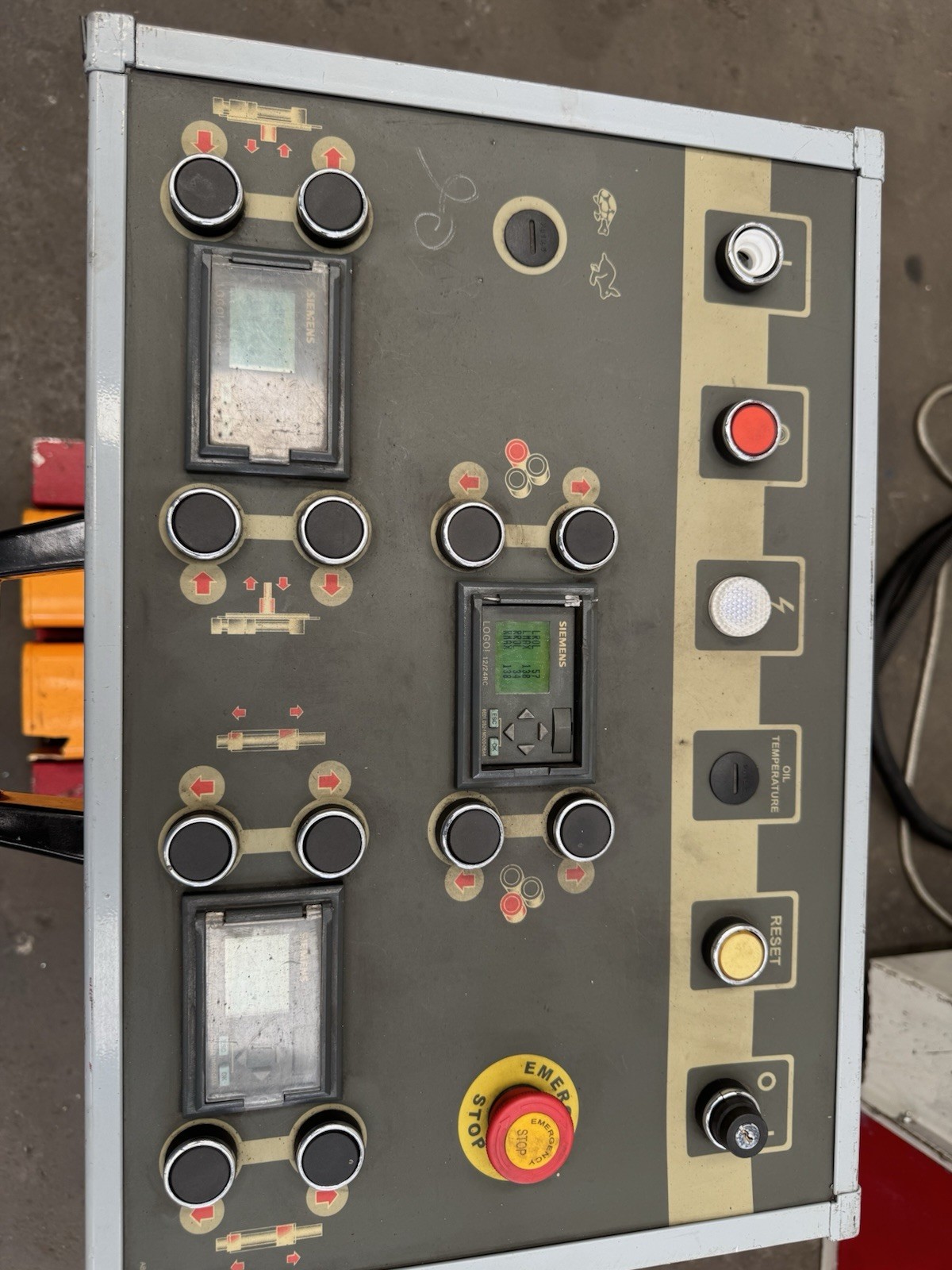

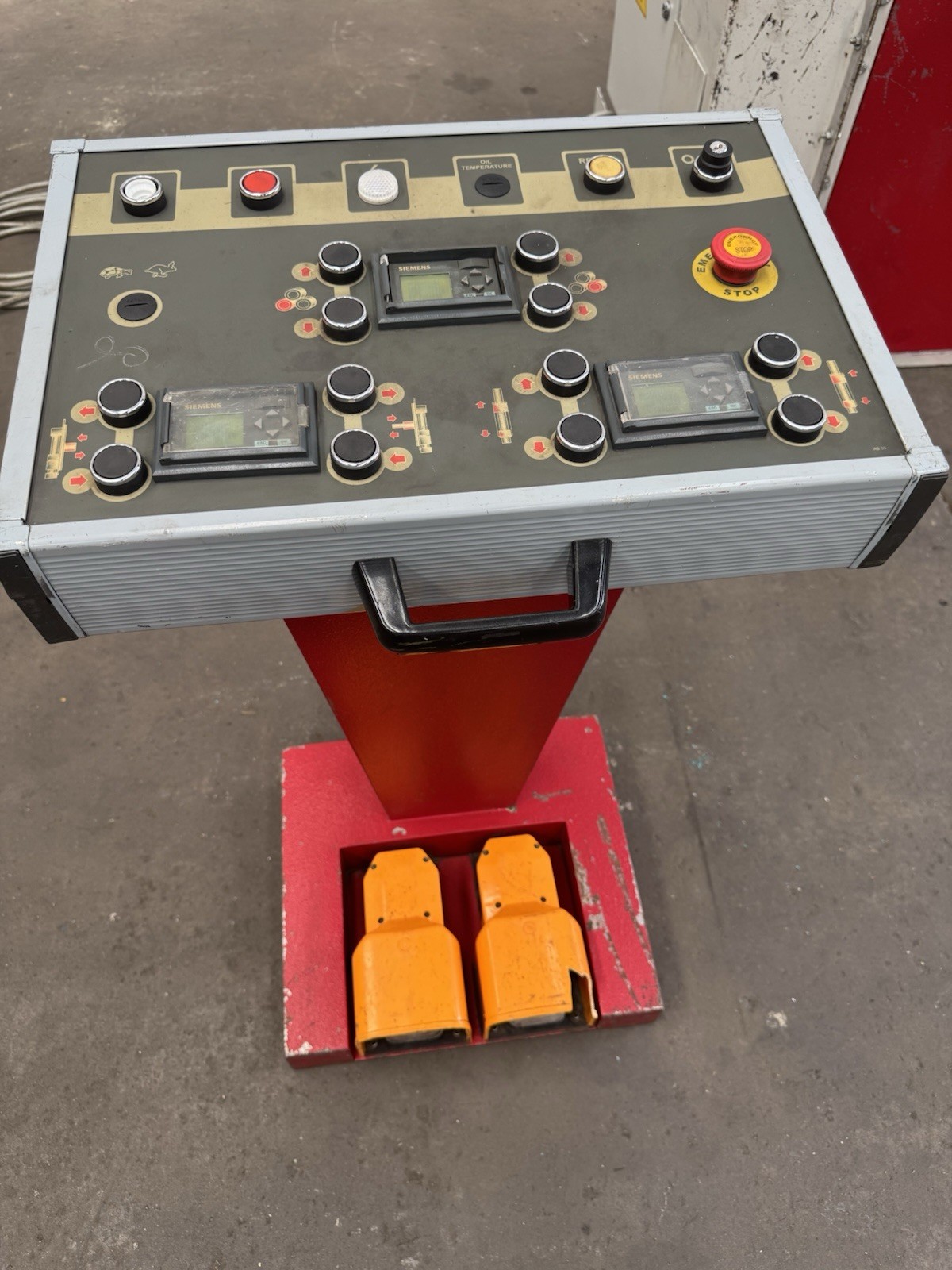

- Wandering pedestal control panel and twin foot pedals

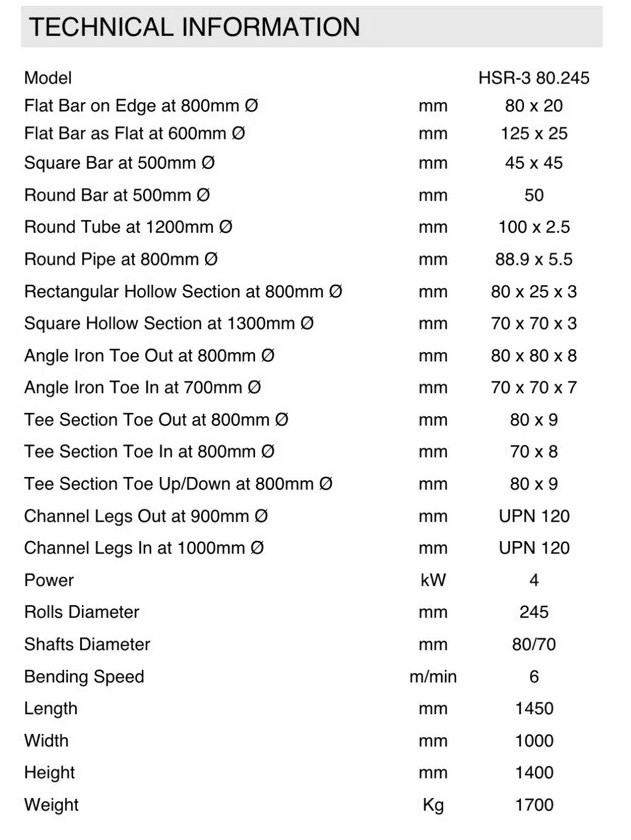

Technical Specification
- Make
- Morgan Rushworth
- Model
- HSR-3 80.245
- Capacity
- Channel Legs In @ 1000mm ØUPN 120
- Flat Bar on Edge at
- 800mm Ø 80 x 20
- Flat Bar as Flat at
- 600mm Ø 125 x 25
- Square Bar at
- 500mm Ø 45 x 45
- Round Bar at
- 500mm Ø 50
- Round Tube at
- 1200mm Ø 100 x 2.5
- Round Pipe at
- 800mm Ø 88.9 x 5.5
- Rect Hollow at
- 800mm Ø 80 x 25 x 3
- Square Hollow at
- 1300mm Ø 70 x 70 x 3
- Angle Toe Out at
- 800mm Ø 80 x 80 x 8
- Angle Toe In at
- 700mm Ø 70 x 70 x 7
- Tee Section Toe Out at
- 800mm Ø 80 x 9
- Tee Section Toe In at
- 800mm Ø 70 x 8
- Above Toe Up/Down at
- 800mm 80 x 9
- Channel Legs Out at
- 900mm Ø mm UPN 120
- Power
- 4kw
- Rolls Diameter mm
- 245
- Shafts Diameter mm
- 80/70
- Bending Speed m/min
- 6
- Length mm
- 1450
- Width mm
- 1000
- Height mm
- 1400
- Weight Kg
- 1700
Interested?
Enquire About This Machine
Send us a message and we’ll come straight back with more detail, video of the machine running, or a delivered price.
- Machines can be seen under power by appointment
- Video available on request
- Nationwide delivery and installation arranged
- Worldwide crating and export
Would rather talk it through?
01384 638 379Mon–Fri 8am–4pm · quote Ref 2123 and we will know the machine
Send An Enquiry
Morgan Rushworth HSR-3 80.245 Hydraulic Section Bending Rolls Ref 2123
You Might Also Like
All Bending RollsSimilar Machines

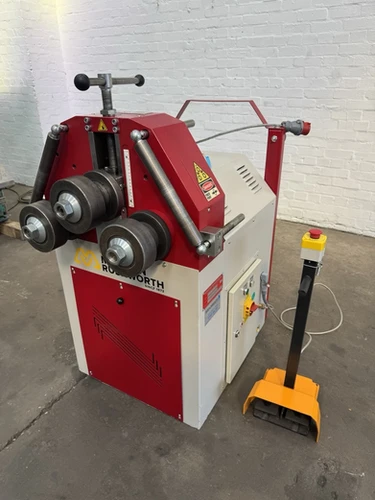

Morgan Rushworth PSR50/155 Powered Section Bending Rolls
- Brand
- Morgan Rushworth
- Price
- POA
- Stock Ref
- 2107

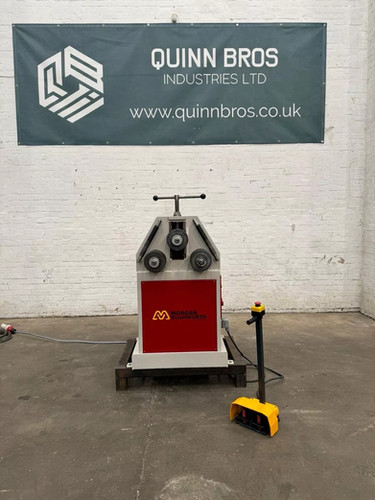

MORGAN RUSHWORTH PSR 50/155 Section Bending Rolls
