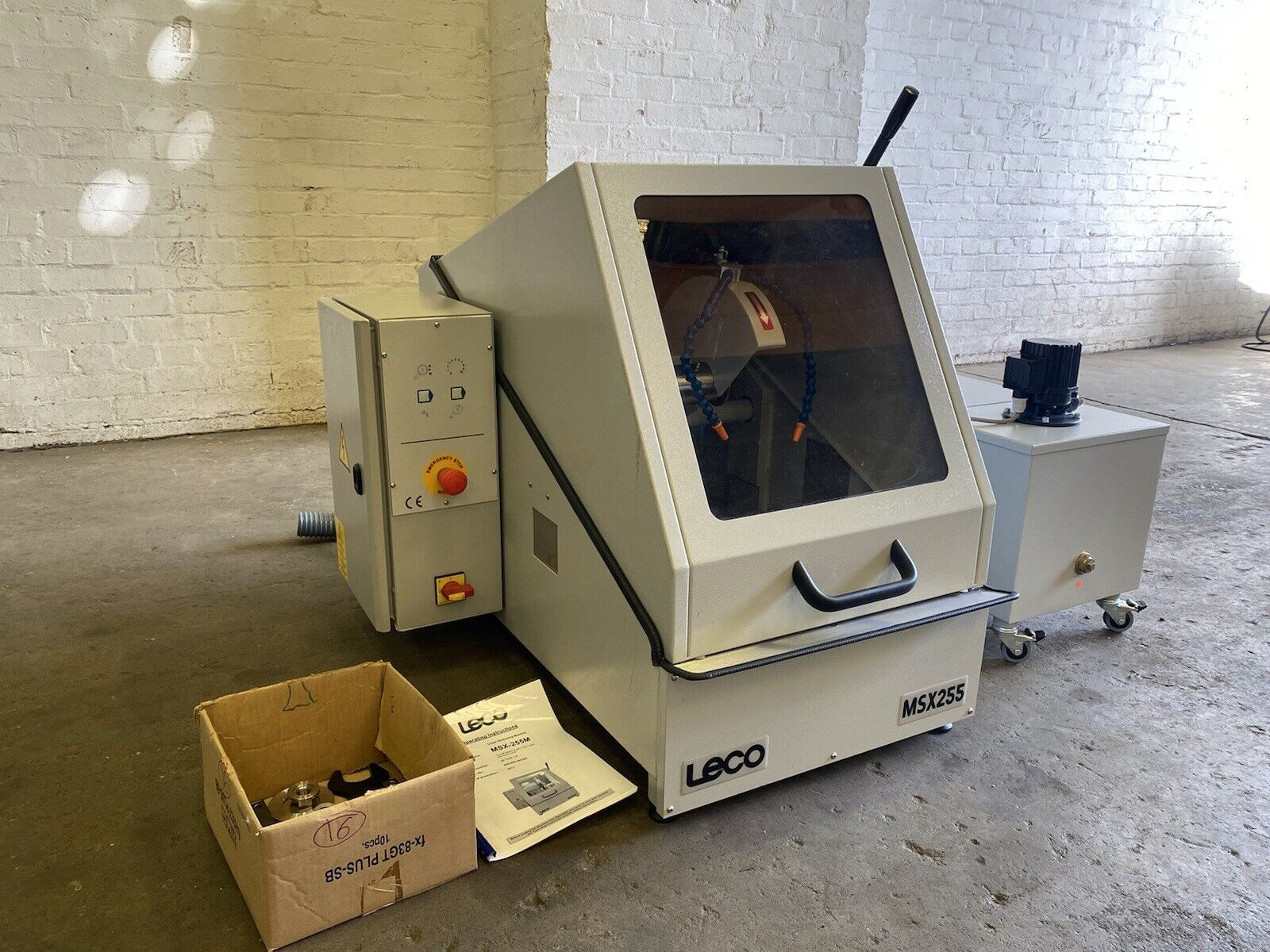

MSX-255 Manual Radial Sectioning Machine

MSX-255 Manual Radial Feed Laboratory Grade Metallographic Sectioning Machine.



Bench Top Model: 4kW (5.36 HP) sectioning motor
at 45m/s with integrated electronic braking system. Spindle desgn suports up to 12 inch blades wi h either 1.25 inch or 32 mm arbor
hole. Sealed control electronics, 14 inch by 10 inch T-Slotted table, 7W 24V LED work light, intergated safety interloc. 18 gallon coolant
recirculating system with motor pumping at 25 L/m. All necessary hoses, fittings, wheel casters, wrenches, Right cam-lock vise, spindle
grease, rust inhibitor, six assorte 12 inch cut-off blades and coolant tank drain for easy set-up, placement and cleaning. Overall
dimensions: 32 inches high, 31.75 inches wide, 39 inches deep
Benchtop Sectioning Saw for
Automotive and Ceramics
Ideal for creating medium-sized sections from
automotive, ceramic, and composite materials. The
MSX255 manual series sectioning machine offers 12 in
(300 mm) blade capacity and a 5.4 HP (4 kW) motor.
Features
Simple manual operation with easy-to-operate
control panel.
Advanced spindle design offers long life and
precise sectioning
Welded steel construction for harsh production
environments
Large T-slotted table for flexible sample fixturing
Channeled coolant drainage provides high flow
rates and minimal debris build-up
Cam-lock vise (right side) included

Models
MSX255M
Manual with Fixed T-Slot Table
- 230V, 380V, or 460V
MSX255M2
Manual linear and radial feed with X-
and Y-Table
- 230V, 380V, 460V
Options
Filter bag system for convenient coolant
system maintenance
• Integrated Y-table for parallel sectioning
