Press & Shear Baikal APHS 1254 X 35 CNC Press Brake
Used Press pressbrake, built 2007, in stock now at our Cradley Heath works and available to view under power by appointment.
- Brand
- Press
- Model
- & Shear Baikal APHS 1254 X 35
- Year
- 2007
- Capacity
- 1250 mm x 35 Tonne
Stock Ref 1945
Tell us where it is going and we will come back with a delivered price, usually the same working day.
Mon–Fri 8am–4pm
About This Machine

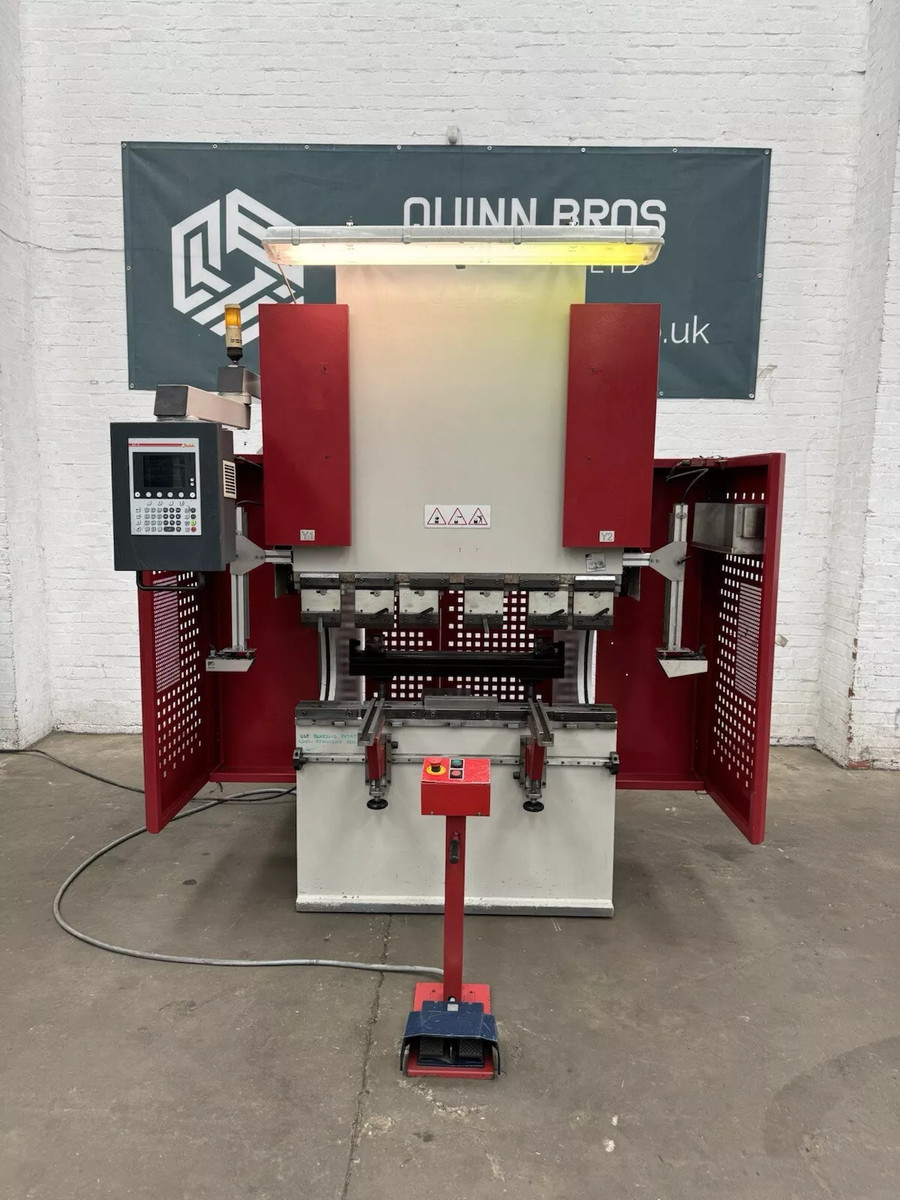

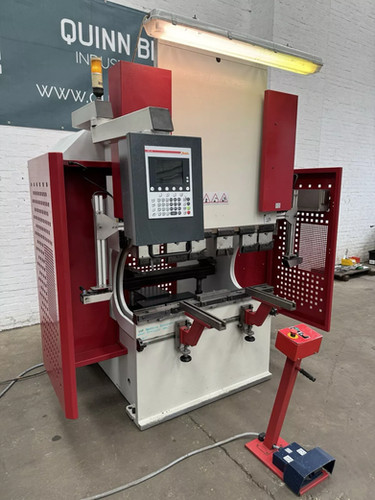

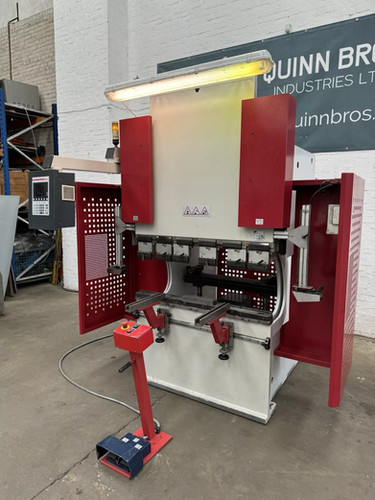

Press & Shear Baikal APHS 1254 X 35 press brake. 1250 mm x 35 Tonne. ESA EC4 control (4 Axis (X, Y1, Y2, X, R)). Year of manufacture 2007.
Speeds
Approach 160, Bending 10, Return 130 ( mm/sec)
- LAZERSAFE safety guards
- Rear gate doors and front side guards

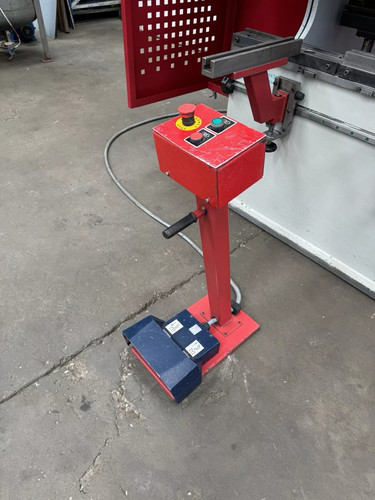

- Twin wondering foot Pedals/Pedestal stop
- Adjustable front sheet supports
- Free standing
- Down stroking
- Make
- Press
- Model
- & Shear Baikal APHS 1254 X 35
- Year
- 2007
- Hours
- 18540
- Bending Length
- 1250 mm
- Tonnage
- 35 Tonne
- Distance Between Frames
- 1070mm
- Stroke
- 230mm
- Daylight
- 455mm
- Throat Depth
- 410mm
- Bed Width
- 60mm
- Bed Height
- 800mm
- Control
- ESA EC4
- Axis
- 4 Axis (X, Y1, Y2, X, R)
- UK delivery
- Flat, curtain-sider or low-loader to suit the machine, priced delivered.
- Crane and HIAB offload
- Where there is nothing on site to lift with, the lorry brings its own crane.
- Machine moving
- Skates, toe jacks and rigging to get the machine into the building.
- Positioning and levelling
- Set down where you want it, levelled and packed, ready for power.
- Worldwide export
- Containerised, strapped and documented for shipping.
We do not run lorries. Every machine goes with specialist machine movers we have used for years, quoted and booked by us, and the delivered figure is confirmed before you commit.
Will it do my job?
This machine is 35 tonne over 1250mm. Put your job in and see.
Put a thickness and a bend length in.
This is the short version of our press brake tonnage calculator. The full one gives you the die to use, the inside radius you will get and the smallest flange you can hold.
