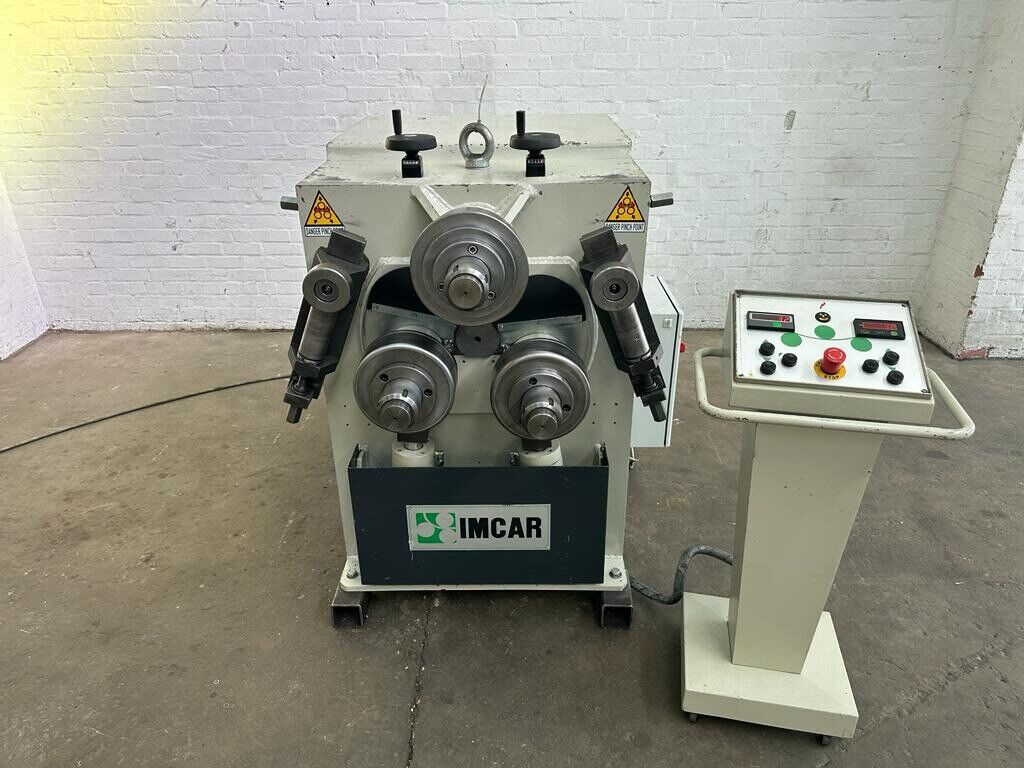

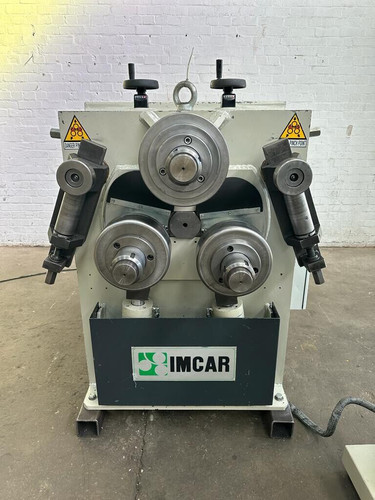

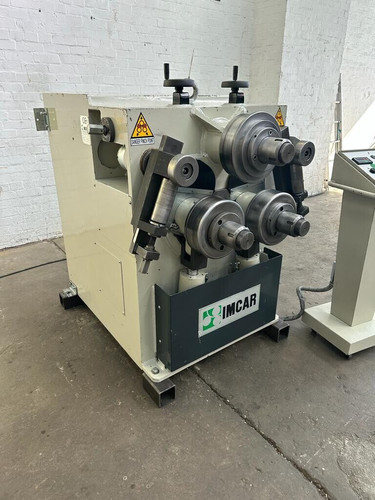

IMCAR (Italy) CPHV80 Double Pinch Section Bending Rolls
IMCAR (Italy) CPHV80 Double Pinch Section Bending Rolls.

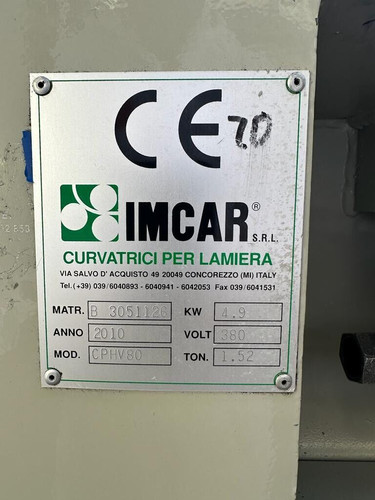

YOM: 2010
IMMACULATE CONDITION!!

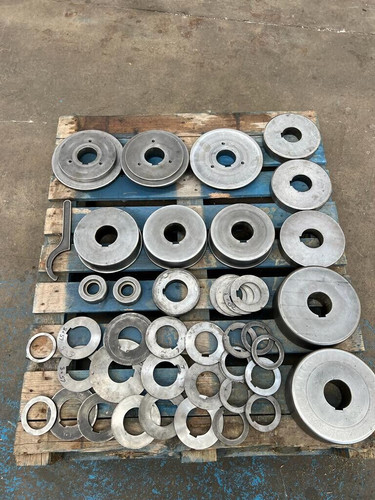

With Tooling (See Pictures)
CHARACTERISTICS
Operation: Hydraulic
Product handled: Profiles and Tubes
Number of rollers: 3 driven rollers
Control: ENC
Other characteristics:
double pinch, with multi-stack tooling, compact
Bending capacity
Bending radius Min.: 60 mm, Max.: 600 mm
INCLUDES: Separate Movable Control Panel, Correcting Rolls with Movements in 3 Dimensions and Hydraulic Adjustments of Bending Rolls

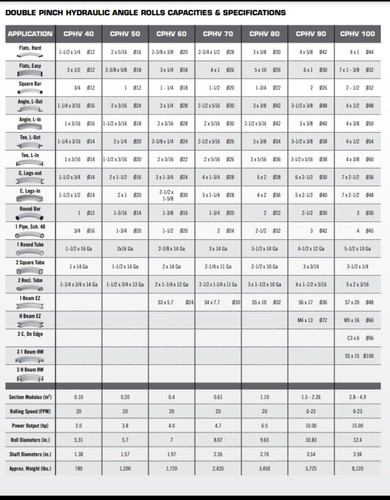

Imperial Capacities:
3" X 3' X 3/8" Angle
Flats Hard Easy: 3" X 5/8" 5" X1"
Square Bar: 1-3/4"
Angie Leg Out In: 3" X 3/8*2-1/2" X 5/16"
Too, Leg Out In: 3" X 3/8" 3" X 5/16*
C Leg-Out: | In: 5^ X2" 4" X 2"
Round Bar: 2"
Pipe Sch. 40: 2-1/2*
Round Tube: 3-12" X 14Ga
Square Tube: 2-1/2* X 10 Ga
Rectangular Tube: 3" X 1-1/2"
| Beam Easy Wav: S5 X 10
Section Modulus in°: 1.10
Power: 6.5 HP
Rolling Speed: 20 RPM
Roll Diameters: 9.65*
